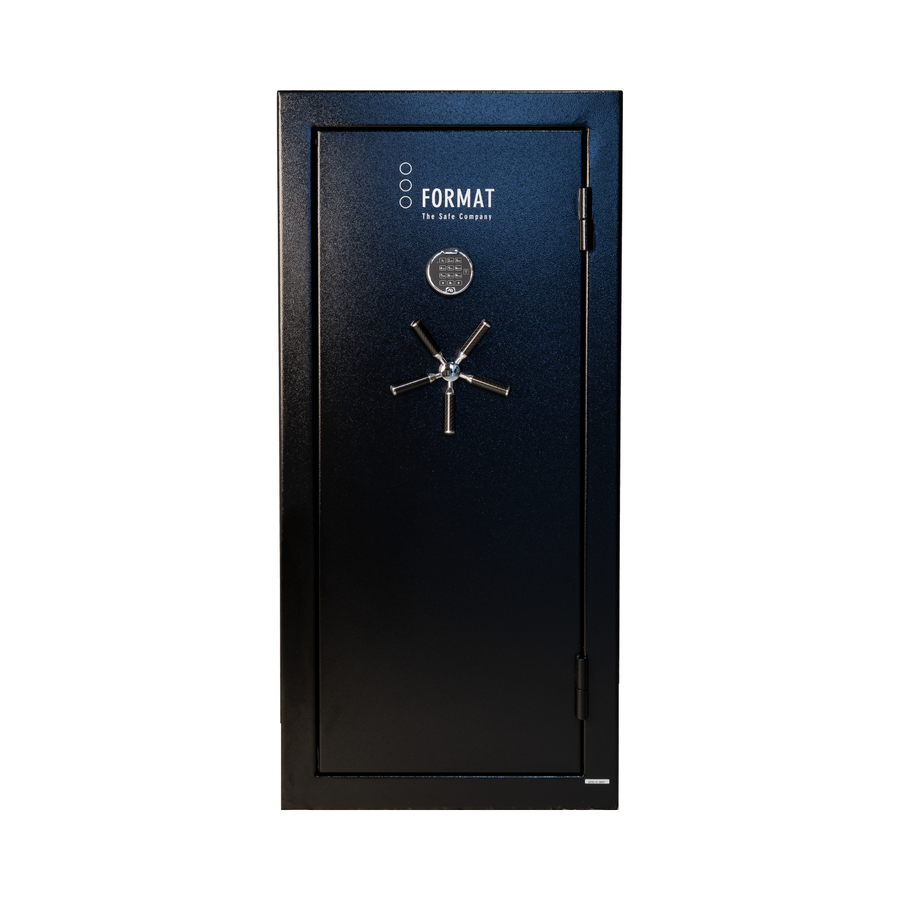

Format DL19 Gun Safe (250kg)

Format DL19 Gun Safe - 19 Gun Capacity, UL RSC Rated, 60 Min Fire Rating, 250kg

The Format DL19 is the mid-size model in the Format DL Series gun safe range, designed for the storage of up to 19 long arms. Rated to the Underwriters Laboratories (UL) Residential Security Container (RSC) standard, the DL19 is constructed from 12-gauge (2.7mm) steel and fitted with a UL Listed Sargent and Greenleaf (S&G) lock, available in either mechanical or electronic configuration.

The DL19 shares the same height (1498mm), fire rating, burglary rating, steel specification, and security features as the DL12 and DL34, stepping up to a wider 711mm body and 508mm depth to accommodate 19 long arms. Security features include three hardened steel door plates for drill-attack protection, an anti-pry tab, and a 5-spoke carbon fibre handle. The interior is fitted with adjustable gun racks and shelves lined in suede with leather trim. The DL19 is finished in black.

Seriously Good at This
America and guns. It's... a relationship. With an estimated 400 million firearms in private hands - more guns than people - if there's one thing Americans have genuinely mastered, it's storing them safely.
Format USA has been engineering gun safes in the United States for over 30 years. Every DL Series safe carries independent UL certification - tested, not just claimed. When it comes to gun safe design, we'll happily defer to the people with this much practice.

Queensland Firearms Storage — Format DL Series Compliance
All Format DL Series safes exceed 150kg, which means floor anchoring is not required under Queensland legislation for Licence Categories A, B, and C.

For Categories D and H, the safe must be bolted to the building structure regardless of weight. Pre-drilled bolt-down holes and concrete anchor bolts are supplied with every DL Series safe.

We recommend the Sentinel Sniper Series Ammo Box as a compliant separate locked ammunition storage solution. For Cat A & B firearms you have the option of securing the Ammo Box inside the safe (we can do this for you)

Storage requirements vary by licence category. Always confirm compliance with your specific licence conditions and Queensland Police. This guidance applies to Queensland only.

Queensland Firearms Storage Rules  |  New South Wales Firearms Storage Rules

In Store and Online
Format Safes are on display for you to inspect, speak to expert locksmiths, buy, and arrange professional delivery and installation. Come and see us during business hours.

Available Finish Options

•
  Black

Finish does not affect security rating, fire rating, or performance.

Fire Rating

• UL Listed fire rated for 60 minutes at 649°C.
• For best fire performance, install the safe at a lower level of the building where fire temperatures are typically lower.
• No safe is completely fireproof. If a fire reaches a sufficiently high temperature for a sustained period, damage to contents may still occur.
• Ammunition must be stored separately from other valuables. Do not store ammunition in the same compartment as documents or other heat-sensitive items.

Cash Rating

• Manufacturer's stated cash rating: $50,000.
• Cash ratings are a common reference point for insurers when assessing safe suitability. Always confirm with your insurance provider that the safe meets their specific policy requirements before purchase.

Key Features

• UL Listed RSC (Residential Security Container) certified burglary protection.
• 19 gun capacity with adjustable interior gun racks.
• 12-gauge (2.7mm) steel body construction.
• UL Listed S&G lock - available in mechanical or electronic configuration.
• Electronic lock (where fitted): programmable 6-digit user code.
• 60-minute fire rating at 649°C.
• $50,000 manufacturer's cash rating.
• Three hardened steel door plates providing protection against drill-attack.
• Anti-pry tab for added door security.
• 5-spoke carbon fibre handle.
• Adjustable interior shelves with suede lining and leather trim.
• Black exterior finish.
• Pre-drilled bolt-down holes - concrete anchor bolts supplied.

What's in the Box

• Format DL19 gun safe
• S&G lock (mechanical or electronic, pre-installed)
• 9V alkaline battery (electronic lock models only)
• Concrete anchor bolts
• Metal shelving clips
• Allen wrench
• Owner's manual

Suitable Uses

• Residential long arm storage for licensed firearms holders
• Storage of up to 19 rifles or shotguns
• Buyers who have outgrown the DL12 or require additional capacity from the outset
• Combined firearm and accessory storage using adjustable shelving
• Buyers requiring a UL RSC rated gun safe - subject to state compliance verification

Full Specifications

Format DL Series - Size Guide

All three DL Series models share the same UL RSC burglary rating, fire rating, lock type, steel specification, and 1498mm height. Selection is based on required gun capacity and interior width.

Frequently Asked Questions

• Does the Format DL19 meet Australian state firearms storage requirements?
  The DL19 holds a UL RSC (Residential Security Container) rating, which is an American standard. Whether this satisfies your state or territory firearms storage obligations depends on your licence category and the specific legislation in your jurisdiction. Licence holders must confirm compliance with their relevant firearms licensing authority before purchase. Terry's Gold Coast Safes can assist with guidance - contact us directly for advice.
• How does the DL19 differ from the DL12 and DL34?
  All three models share the same 1498mm height, UL RSC burglary rating, 60-minute fire rating at 649°C, steel specification, and security features. The DL19 (711mm wide, 250kg) sits between the DL12 (533mm wide, 195kg, 12 guns) and the DL34 (1016mm wide, 335kg, 34 guns), offering a practical mid-size option for collections that have grown beyond 12 long arms or where the DL34 footprint exceeds available space.
• What is the difference between the mechanical and electronic lock options?
  The mechanical lock uses a dial combination that is set and changed manually - it requires no battery and has no electronic components. The electronic lock uses a programmable 6-digit keypad code and requires a single 9V alkaline battery. Both lock types are UL Listed S&G locks. The electronic lock offers faster daily access, while the mechanical lock requires no battery management.
• Can I store ammunition in the DL19?
  Ammunition should be stored separately from firearms and other valuables. Many Australian state firearms regulations specify how and where ammunition must be stored. Check your licence conditions and relevant state legislation for specific requirements.
• Can the safe be bolted to the floor?
  Yes. Bolt-down holes are pre-drilled in the base of the safe and concrete anchor bolts are supplied. Anchoring is strongly recommended to prevent removal. Ensure the safe is level before anchoring - use appropriate shims if required.

Additional Information

• RSC vs TL-15 - understanding the difference:
  The UL RSC rating requires resistance to attack for a minimum of 5 minutes using hand tools. The UL TL-15 rating - used on the Format TL Series - requires a minimum of 15 minutes against a broader range of tools including power and cutting equipment. For buyers requiring a higher level of certified burglary protection, the Format TL Series should be considered.
• Drill-attack protection:
  The DL19 door incorporates three hardened steel plates positioned to resist drill-based attack on the locking mechanism. This is a meaningful additional layer of security beyond basic steel construction.
• Lock selection:
  Both mechanical and electronic lock options are UL Listed S&G locks. If selecting the electronic lock, the factory default master code of 1-2-3-4-5-6 must be changed before the safe is placed into service. Always verify the new code operates correctly with the door open before closing the safe. Four consecutive incorrect entries will lock out the keypad for 10 minutes.
• Interior configuration:
  The adjustable gun racks and shelving allow the interior to be reconfigured to suit different combinations of long arms and accessories. Store heavy items away from the centre of shelves to prevent sagging.
• Placement advice:
  Install near a load-bearing wall. A protective barrier such as a carpet offcut, treated timber, or rubber mat between the safe and floor is recommended to prevent surface scratching, which can lead to rust. In humid environments, a desiccant pack or dehumidifier rod inside the safe is recommended to protect firearms from moisture corrosion.
• Moving and installation:
  At 250kg, the DL19 requires appropriate moving equipment and adequate personnel for safe relocation. A standard refrigerator dolly is not suitable. Check doorway clearances and floor load ratings before delivery. The safe door must not be removed during relocation.

Format Safes Australian Warranty
This product is sold and supported in Australia by Sentinel Safes Pty Ltd (ABN 83 687 086 791), the Australian distributor for Format Safes and other brands in the Sentinel range. The following warranty cover applies from the original date of purchase:

• 7-Year Structural Warranty - covers the integrity of the safe body, including welds, hinges, and framework.
• 2-Year Electronic Warranty - covers the keypad, electronic lock system, and circuit boards.

Warranty is valid for the original purchaser only. Proof of purchase is required. The safe must be installed and used as intended, and must not have been modified or serviced by unauthorised parties. Normal wear and tear, cosmetic damage, misuse, and damage to contents stored inside the safe are not covered. Transport damage after delivery must be reported within 3 days of receipt.

To make a warranty claim, contact your place of purchase in the first instance.

View Sentinel Safes Warranty Information  |  Download Sentinel Safes Warranty Statement (PDF)

This warranty operates in addition to rights available under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
