Product Description
Yale YSEM/520/EG1 Office Safe (28kg)
The Yale YSEM/520/EG1 Maximum Security Professional Safe is built for demanding environments that require strong protection for valuables, documents and digital media. With advanced electronic locking, reinforced construction and user-friendly features, this safe is trusted worldwide for homes and offices.
Key Features:
- Motorised locking with two 20 mm anti-saw bolts
- 6 mm solid steel laser-cut door and reinforced body
- Anti-drill protection in key areas
- PIN code access (4–8 digits) with LCD keypad display
- Mechanical key override (double-bitted key)
- Lock-down mode after 3 incorrect attempts
- Automatic door opening for convenience
- Internal LED light for clear visibility
- Internal hooks and shelf for storage organisation
- Pre-drilled fixing points and bolts for secure wall or floor installation

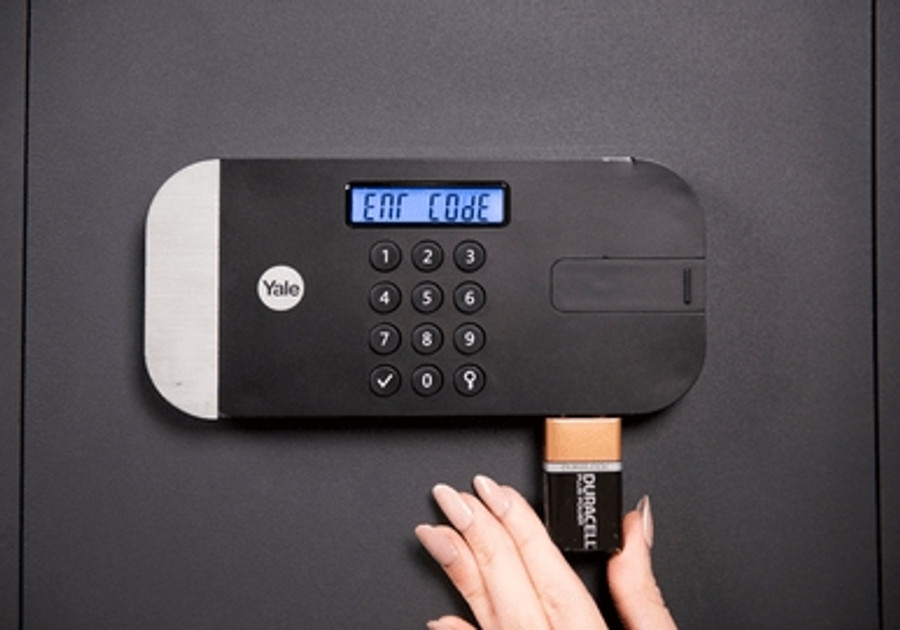

- Emergency 9V battery input in case of flat batteries
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| External Dimensions (H × W × D) | 520 × 350 × 360 mm |
| Internal Dimensions (H × W × D) | 510 × 337 × 290 mm |
| Capacity / Volume | 49.8 litres |
| Net Weight | 28 kg |
| Door Thickness | 6 mm |
| Wall Thickness | Back: 2 mm | Sides: 2.5 mm |
| Locking System | Electronic keypad + motorised bolts + mechanical override |
| Power | 4 × AA batteries (included) + external 9V backup |
| Fire / Water Rating | Not fire or water resistant |
| Part Number | YSEM/520/EG1 |
Includes
- Yale YSEM/520/EG1 Safe
- 2 × mechanical override keys
- Internal shelf and hooks
- Mounting bolts and fixings
- 4 × AA batteries
- User manual
Yale Safes – Range Comparison
| Model | External Dimensions (H × W × D) | Fire Rating | Weight (kg) | Volume (L) |
|---|---|---|---|---|
| YSS/250/EB1 – Smart Safe | 250 × 350 × 300 | None | 11.4 | 20.5 |
| YSEM/250/EG1 – Home Safe | 250 × 350 × 300 | None | 15.7 | 18.6 |
| YSEM/400/EG1 – Office Safe | 400 × 350 × 340 | None | 22 | 35.5 |
| YSEM/520/EG1 – Professional Safe | 520 × 350 × 360 | None | 28 | 49.8 |
| YLEM/200/EG1 – Laptop Safe | 200 × 480 × 350 | None | 18 | 24.8 |
| YFM/352/FG2 – Fire Safe (Medium) | 352 × 412 × 363 | 60 min @ 927°C | 31 | 19.5 |
| YFM/420/FG2 – Fire Safe (Large) | 420 × 352 × 433 | 60 min @ 927°C | 36 | 25.3 |
| YFM/520/FG2 – Fire Safe (Extra Large) | 522 × 404 × 440 | 60 min @ 927°C | 53 | 36.9 |
| YSEL/200/EG7 – Elite Safe (Small) | 200 × 310 × 200 | None | 6.8 | 8.3 |
| YSEL/250/EG7 – Elite Safe (Medium) | 250 × 350 × 250 | None | 9.3 | 16.7 |
| YSEL/390/EG7 – Elite Safe (Large) | 390 × 350 × 360 | None | 14.3 | 41.0 |
Terry's Gold Coast Safes... Trusted since 1975.
Warranty Information
SAFES DELIVERY, INSTALLATION & WARRANTY
Warranty
Terry's Locksmiths provides a 5 Year Mechanical Warranty and 12 month Electronic Warranty.
Some manufacturers may offer extended warranty coverage on mechanical components for up to 7 years. Please note that any extended manufacturer warranty does not include call-out fees, labour charges, or servicing costs outside the 12-month warranty period provided by Terry's Locksmiths or Terry's Gold Coast Safes.
Safes supplied by Terry's but not installed by our technicians may not be covered under warranty if they are not installed in strict accordance with manufacturer specifications. Responsibility for correct installation lies solely with the installer. Warranty claims may be denied if improper or non-compliant installation is identified.
Delivery and Installation Requirements
When quoting based on photographs or client-provided descriptions, it is assumed the installation site is flat, level, and easily accessible, with no stairs, steep driveways, tight access, or other delivery challenges.
Additional charges may apply if site conditions differ from what was disclosed, or if extra labour, equipment, or rescheduling is required.
