Product Description

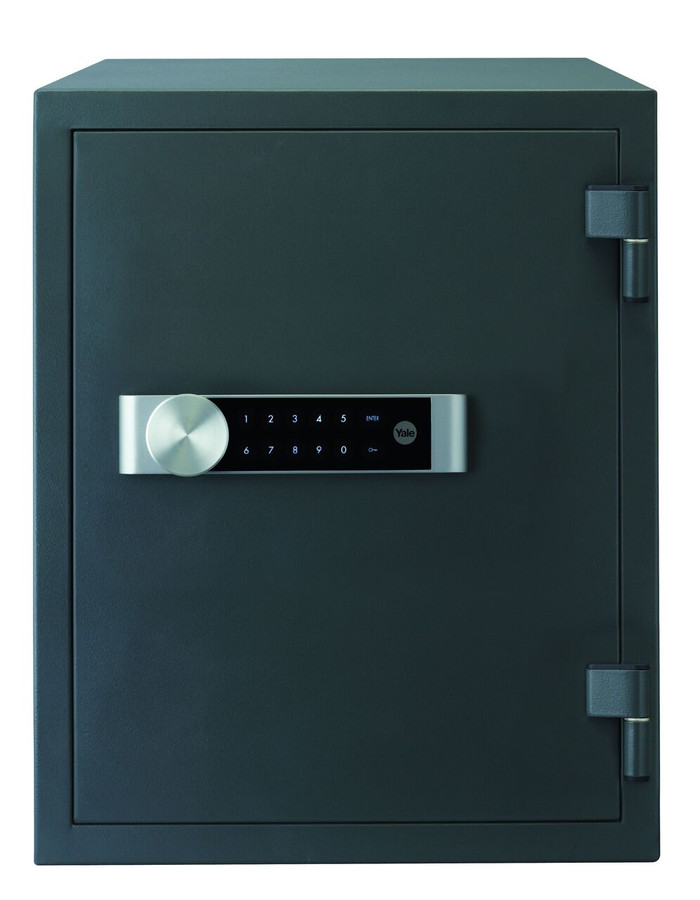

Yale Fire Safe - Extra Large Size (53kg)
The Yale YFM/520/FG2 is the extra-large model in Yale’s fire-safe range, designed to protect documents, valuables and irreplaceable media for up to 60 minutes under intense heat. With a digital keypad, advanced locking, and internal organisation, it’s a premium choice for both residential and workplace environments.
Key Features:
- Digital touchpad interface with over 1 billion combinations
- Code-scramble input for privacy protection
- Support for one-time access codes
- Silent input option (no feedback sound) for discretion
- Adjustable total lock-out (1 to 48 hours) after continuous failed attempts
- Resettable user code between 4 and 12 digits
- External 9 V battery terminal for emergency opening
- Low battery warning signal / indicator
- State-certified 1-hour fire protection (internal temp ≤ 150 °C in 927 °C test furnace)
- 16 mm steel locking bolts & reinforced hinges
- Hinge protection via 18 mm steel internal back-bolts
- Epoxy-sealed galvanised shell for corrosion resistance
- Interior shelf and drawer for organising contents
- Pre-drilled floor-mounting holes (mounting kit included)
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| External Dimensions (H × W × D) | 522 × 404 × 440 mm |
| Internal Dimensions (H × W × D) | 410 × 300 × 300 mm |
| Volume / Capacity | 36.9 L |
| Net Weight | 53 kg |
| Locking Bolts | 16 mm steel bolts |
| Door / Body Construction | Reinforced door, epoxy-sealed galvanised shell |
| Power | 4 × AA batteries + external 9 V terminal |
| Fire Rating | 60 min @ 927 °C (document safe) |
| Part Number | YFM/520/FG2 |
Includes
- Yale YFM/520/FG2 Fire Safe
- Interior shelf and drawer
- Mounting bolts / fixings
- User manual & quick start guide
Yale Safes – Range Comparison
| Model | External Dimensions (H × W × D) | Fire Rating | Weight (kg) | Volume (L) |
|---|---|---|---|---|
| YSS/250/EB1 – Smart Safe | 250 × 350 × 300 | None | 11.4 | 20.5 |
| YSEM/250/EG1 – Home Safe | 250 × 350 × 300 | None | 15.7 | 18.6 |
| YSEM/400/EG1 – Office Safe | 400 × 350 × 340 | None | 22 | 35.5 |
| YSEM/520/EG1 – Professional Safe | 520 × 350 × 360 | None | 28 | 49.8 |
| YLEM/200/EG1 – Laptop Safe | 200 × 480 × 350 | None | 18 | 24.8 |
| YFM/352/FG2 – Fire Safe (Medium) | 352 × 412 × 363 | 60 min @ 927°C | 31 | 19.5 |
| YFM/420/FG2 – Fire Safe (Large) | 420 × 352 × 433 | 60 min @ 927°C | 36 | 25.3 |
| YFM/520/FG2 – Fire Safe (Extra Large) | 522 × 404 × 440 | 60 min @ 927°C | 53 | 36.9 |
| YSEL/200/EG7 – Elite Safe (Small) | 200 × 310 × 200 | None | 6.8 | 8.3 |
| YSEL/250/EG7 – Elite Safe (Medium) | 250 × 350 × 250 | None | 9.3 | 16.7 |
| YSEL/390/EG7 – Elite Safe (Large) | 390 × 350 × 360 | None | 14.3 | 41.0 |
Terry’s Gold Coast Safes… securing what matters since 1975.
Warranty Information
SAFES DELIVERY, INSTALLATION & WARRANTY
Warranty
Terry's Locksmiths provides a 5 Year Mechanical Warranty and 12 month Electronic Warranty.
Some manufacturers may offer extended warranty coverage on mechanical components for up to 7 years. Please note that any extended manufacturer warranty does not include call-out fees, labour charges, or servicing costs outside the 12-month warranty period provided by Terry's Locksmiths or Terry's Gold Coast Safes.
Safes supplied by Terry's but not installed by our technicians may not be covered under warranty if they are not installed in strict accordance with manufacturer specifications. Responsibility for correct installation lies solely with the installer. Warranty claims may be denied if improper or non-compliant installation is identified.
Delivery and Installation Requirements
When quoting based on photographs or client-provided descriptions, it is assumed the installation site is flat, level, and easily accessible, with no stairs, steep driveways, tight access, or other delivery challenges.
Additional charges may apply if site conditions differ from what was disclosed, or if extra labour, equipment, or rescheduling is required.
