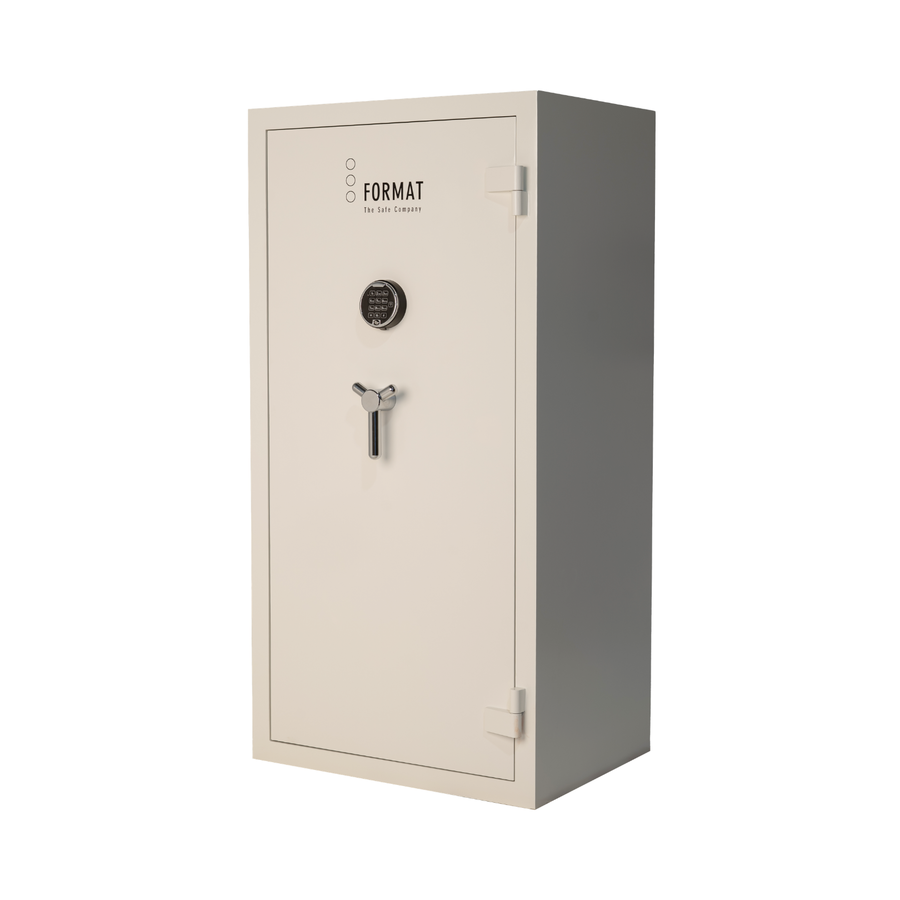

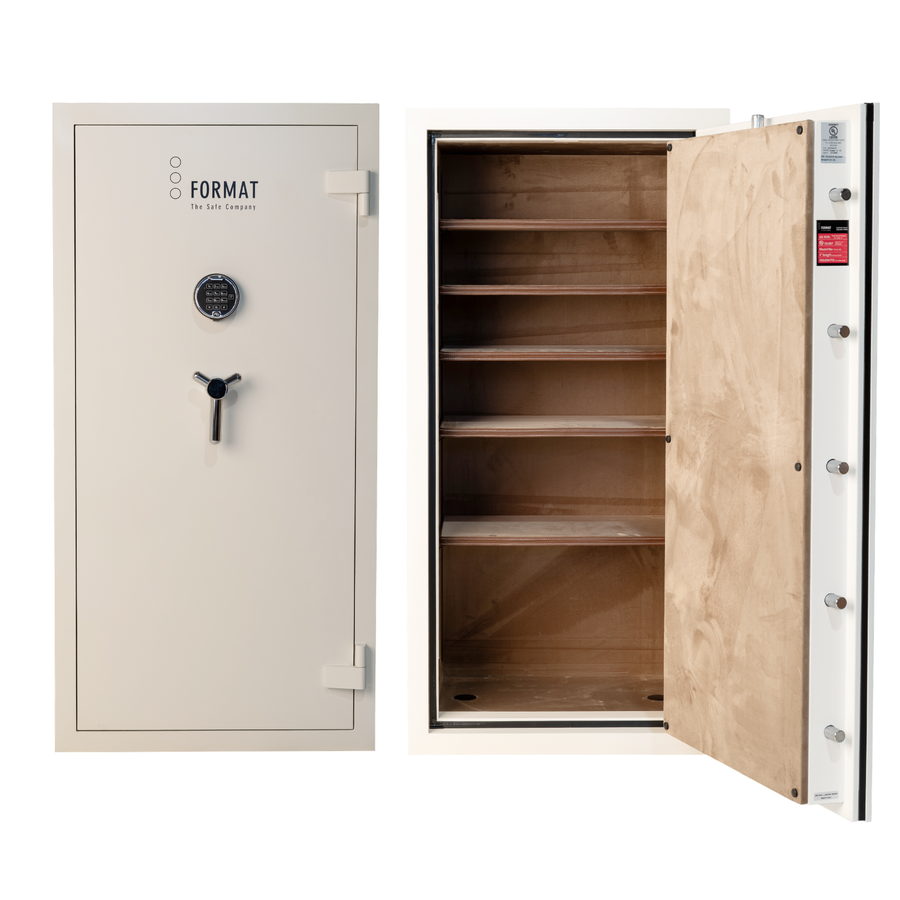

Format TL15-19 Security Safe (662kg)

Format TL15-19 Security Safe - UL TL-15 Rated, 60 Min Fire Rating, 662kg

The Format TL15-19 is the largest model in the Format TL-15 security safe series, rated to the Underwriters Laboratories (UL) TL-15 burglary resistance standard. At 1447mm tall, 711mm wide, and 662kg, the TL15-19 is suited to high-capacity residential installations and commercial environments where substantial storage volume and maximum certified security are required.

The safe is constructed from 11-gauge (3.0mm) steel and fitted with a UL Listed Sargent and Greenleaf (S&G) electronic lock, providing a $225,000 cash rating and a 60-minute fire rating at 760°C. Two pre-drilled bolt-down holes are included for floor anchoring. The TL15-19 is finished in acrylic white.

In Store and Online
Format Safes are on display for you to inspect, speak to expert locksmiths, buy, and arrange professional delivery and installation. Come and see us during business hours.

Available Finish Options

•
  Acrylic White

Finish does not affect security rating, fire rating, or performance.

Fire Rating

• UL Listed fire rated for 60 minutes at 760°C.
• The door is fitted with a Palusol heat-activated fire seal that expands when exposed to heat, sealing the door gap and helping protect contents from smoke and flame penetration.
• For best fire performance, the safe should be installed at a lower level of the building where fire temperatures are typically lower.
• No safe is completely fireproof. If a fire reaches a sufficiently high temperature for a sustained period, damage to contents may still occur.
• For heat-sensitive media such as photographs, USB drives, or electronic storage, a dedicated media storage insert is recommended inside the safe.

Cash Rating

• Manufacturer's stated cash rating: $225,000.
• Cash ratings are a common reference point for insurers when assessing safe suitability. Always confirm with your insurance provider that the safe meets their specific policy requirements before purchase.
• Jewellery and other valuables are typically assessed at a different rate to cash. Confirm valuables cover with your insurer separately.

Key Features

• UL Listed TL-15 certified burglary protection - tested to resist tool attack for a minimum of 15 minutes.
• 11-gauge (3.0mm) steel body construction.
• UL Listed S&G electronic lock with programmable 6-digit user code.
• 60-minute fire rating at 760°C with Palusol door seal.
• $225,000 manufacturer's cash rating.
• 100mm anti-pry door bolts.
• Steel rated to 690 MPa (equivalent to 100,000 PSI) tensile strength.
• Two pre-drilled bolt-down holes for floor anchoring - concrete anchor bolts supplied.

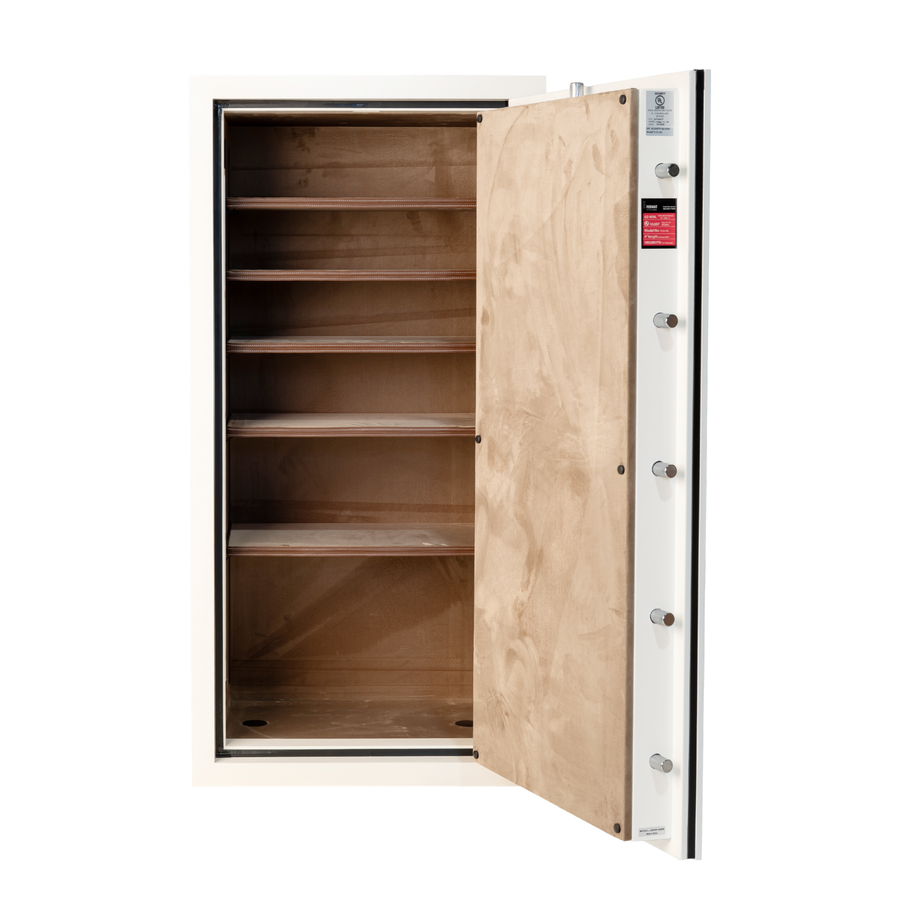

• Adjustable interior shelves with textured fabric lining and leather trim.
• Acrylic white exterior paint finish.
• Largest model in the Format TL-15 series - suited to high-capacity residential and commercial storage requirements.

What's in the Box

• Format TL15-19 security safe
• S&G electronic lock keypad (pre-installed)
• 9V alkaline battery
• Concrete anchor bolts
• Metal shelving clips
• Allen wrench
• Owner's manual

Suitable Uses

• High-capacity residential storage of jewellery, cash, and important documents
• Commercial environments requiring certified TL-15 burglary protection
• Business cash, records, and asset storage
• Retail and hospitality back-of-house security
• Applications where the TL15-07 or TL15-09 capacity is insufficient
• Insurance-specified TL-15 rated safe requirements at large volume

Full Specifications

Format TL-15 Series - Size Guide

All three TL-15 models share the same UL TL-15 burglary rating, fire rating, lock type, and steel specification. Selection is based on required interior capacity.

Format TL-15 Series models shown at correct relative scale. Left to right: TL15-07 (685mm, 313kg), TL15-09 (939mm, 354kg), TL15-19 (1447mm, 662kg).

Frequently Asked Questions

• What does UL TL-15 rated mean?
  TL-15 is a burglary resistance rating issued by Underwriters Laboratories (UL). It means the safe has been independently tested to resist attack using common hand tools, power tools, and mechanical or electrical devices for a minimum of 15 minutes. TL-15 represents a significantly higher level of certified protection than the Residential Security Container (RSC) standard used for most entry-level home and gun safes.
• Why is the TL15-19 wider and deeper than the TL15-07 and TL15-09?
  The TL15-07 and TL15-09 share the same 584mm width and 482mm depth. The TL15-19 steps up to 711mm wide and 558mm deep, providing a substantially larger interior volume. This makes it the appropriate choice where the mid-size models are insufficient for the volume of items to be secured.
• What happens if the battery dies or I forget my code?
  The S&G electronic lock retains the programmed code in memory even when the battery is fully depleted. Replace the 9V battery and the lock will resume normal operation without re-programming. If you have forgotten your code, contact your place of purchase or Terry's Gold Coast Safes for assistance. Proof of ownership will be required.
• What are the floor load and access requirements for the TL15-19?
  At 662kg, the TL15-19 places significant load on the floor beneath it. Floor load capacity must be verified prior to installation, particularly on upper floors or suspended timber subfloors. Doorway and corridor clearances must also be confirmed before delivery, as the safe cannot be disassembled for access. Professional moving equipment and personnel are required.

Additional Information

• TL-15 vs RSC - understanding the difference:
  The Residential Security Container (RSC) rating requires a minimum 5-minute resistance to attack. The TL-15 rating requires a minimum 15-minute resistance using a broader range of tools, including grinding and cutting equipment. For high-value contents or commercial environments, TL-15 represents a meaningful step up in certified protection.
• Palusol fire seal:
  The Palusol seal fitted to the door is a heat-activated intumescent seal. When exposed to high heat, the seal expands rapidly, closing the gap between the door and the frame to slow the ingress of heat, smoke, and flame. The seal is passive and requires no maintenance under normal conditions.
• Placement and floor loading:
  At 662kg, the TL15-19 requires careful placement planning. Install near a load-bearing wall. Floor load ratings must be verified before installation - suspended timber floors and upper-level locations may require additional structural support. A protective barrier such as a carpet offcut, treated timber, or rubber mat between the safe and floor is recommended to prevent surface scratching, which can lead to rust.
• Humidity and climate:
  In humid environments, a small desiccant pack or plug-in dehumidifier rod inside the safe is recommended to protect documents, metals, and other contents from moisture damage. Keep any dehumidifier device at least 25mm from interior walls and shelving.
• Document and media storage:
  For best protection against fire damage, store paper documents at the bottom of the safe where temperatures are lowest during a fire event. Photographic negatives, USB drives, CDs, and other heat-sensitive media require a dedicated media storage insert for adequate protection, as the fire rating applies to paper documents only unless otherwise specified.
• Lock programming:
  The S&G electronic lock is factory set with a default master code of 1-2-3-4-5-6. This must be changed to a personal code before the safe is placed into service. The lock supports a master code and one additional user code. Four consecutive incorrect entries will lock out the keypad for 10 minutes. Always verify the new code operates correctly with the door open before closing the safe.
• Moving and installation:
  At 662kg, the TL15-19 requires professional moving equipment and a trained team for safe relocation. A standard refrigerator dolly is not suitable and presents a serious risk of injury. Delivery access, floor load capacity, and final placement must all be confirmed in advance. The safe door must not be removed during relocation.

Format Safes Australian Warranty
This product is sold and supported in Australia by Sentinel Safes Pty Ltd (ABN 83 687 086 791), the Australian distributor for Format Safes and other brands in the Sentinel range. The following warranty cover applies from the original date of purchase:

• 7-Year Structural Warranty - covers the integrity of the safe body, including welds, hinges, and framework.
• 2-Year Electronic Warranty - covers the keypad, electronic lock system, and circuit boards.

Warranty is valid for the original purchaser only. Proof of purchase is required. The safe must be installed and used as intended, and must not have been modified or serviced by unauthorised parties. Normal wear and tear, cosmetic damage, misuse, and damage to contents stored inside the safe are not covered. Transport damage after delivery must be reported within 3 days of receipt.

To make a warranty claim, contact your place of purchase in the first instance.

View Sentinel Safes Warranty Information  |  Download Sentinel Safes Warranty Statement (PDF)

This warranty operates in addition to rights available under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
