Product Description

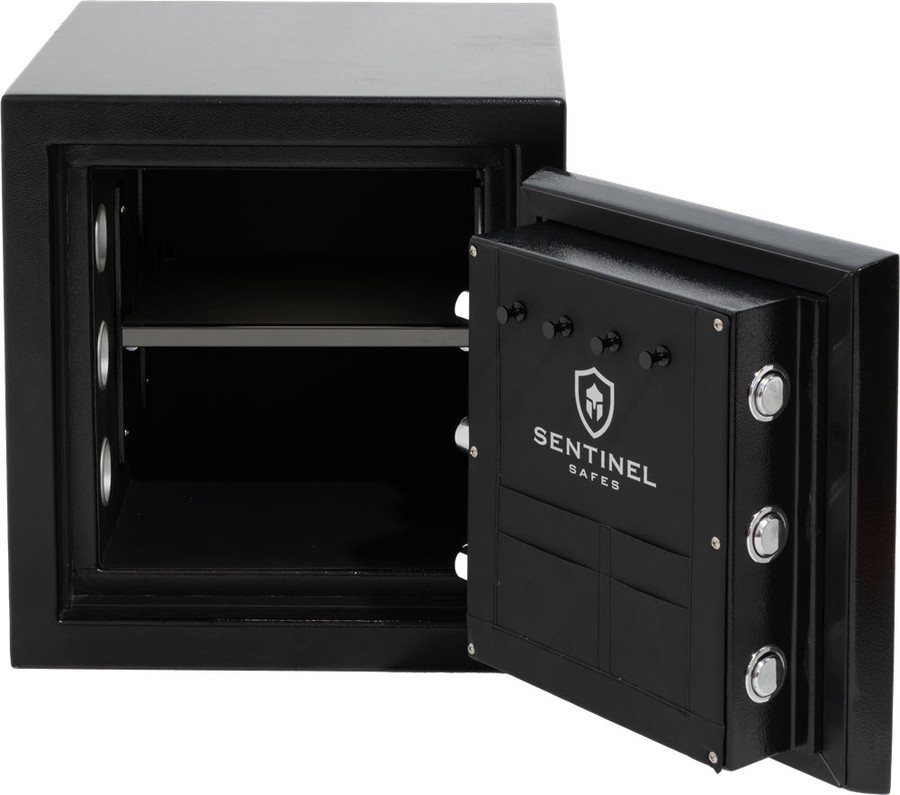

Sentinel Protector 1 Fire Rated (106kg)
Sentinel Protector 1 Safe
Compact high-security safe with upgraded fire protection, multi-layer steel construction and luxury interior detailing.
Estimated Warehouse Dispatch: 1 Day
60 Minute Fire Rating @ 930°C
$50,000 Cash Rating
Features
- 60 minutes fire resistance at 930°C
- $50,000 insurable cash rating
- Body: dual steel plates filled with fireproof material (overall wall thickness 70 mm)
- Door: 3 layers of steel with fireproof fill (overall thickness 87 mm)
- 3-way 32 mm locking bolts plus glass relocking device; spring-loaded relocker for anti-tamper
- Luxury pop-out drawer with adjustable shelving
- LED sensor lighting; synthetic leather lining with black chrome trim, jewellery hooks & passport holder
- High-quality universal locking options: dormakaba / Lagard digital, combination or keyed (with key override)
Specifications
| Height (mm) | Width (mm) | Depth (mm) | |
|---|---|---|---|
| Internal | 335 | 310 | 270 |
| External | 475 | 450 | 450 |
Allow an additional 50 mm for handle/hinge projection unless otherwise specified.
Capacity & Weight
- Capacity: 22 L
- Weight: 106 kg
What’s In The Box
- Sentinel Protector 1 Safe
- Override keys (for key override function)
- Fixing bolts and installation guide
Download PDF Resources
Item Code Family — Protector Series
| Model | Internal (mm) | External (mm) | Weight (kg) | Capacity |
|---|---|---|---|---|
| Protector 1 | 335 × 310 × 270 | 475 × 450 × 450 | 106 | 22 L |
| Protector 2 | 400 × 360 × 320 | 540 × 500 × 500 | 163 | 37 L |
| Protector 3 | 530 × 420 × 380 | 670 × 560 × 560 | 210 | 68 L |
| Protector 4 | 660 × 420 × 295 | 800 × 560 × 475 | 216 | 98 L |
| Protector 5 | 960 × 420 × 380 | 1100 × 560 × 560 | 318 | 137 L |
Note: handle/hinge thickness not included in external measurements (allow ~50 mm).
Warranty
- Sentinel Safes 7 Year Warranty on manufacturing defects.
- Electronic components covered as per manufacturer terms.
- Installation must be in accordance with Sentinel guidance and local regulations.
Warranty Information
SAFES DELIVERY, INSTALLATION & WARRANTY
Warranty
Terry's Locksmiths provides a 5 Year Mechanical Warranty and 12 month Electronic Warranty.
Some manufacturers may offer extended warranty coverage on mechanical components for up to 7 years. Please note that any extended manufacturer warranty does not include call-out fees, labour charges, or servicing costs outside the 12-month warranty period provided by Terry's Locksmiths or Terry's Gold Coast Safes.
Safes supplied by Terry's but not installed by our technicians may not be covered under warranty if they are not installed in strict accordance with manufacturer specifications. Responsibility for correct installation lies solely with the installer. Warranty claims may be denied if improper or non-compliant installation is identified.
Delivery and Installation Requirements
When quoting based on photographs or client-provided descriptions, it is assumed the installation site is flat, level, and easily accessible, with no stairs, steep driveways, tight access, or other delivery challenges.
Additional charges may apply if site conditions differ from what was disclosed, or if extra labour, equipment, or rescheduling is required.
