Product Description

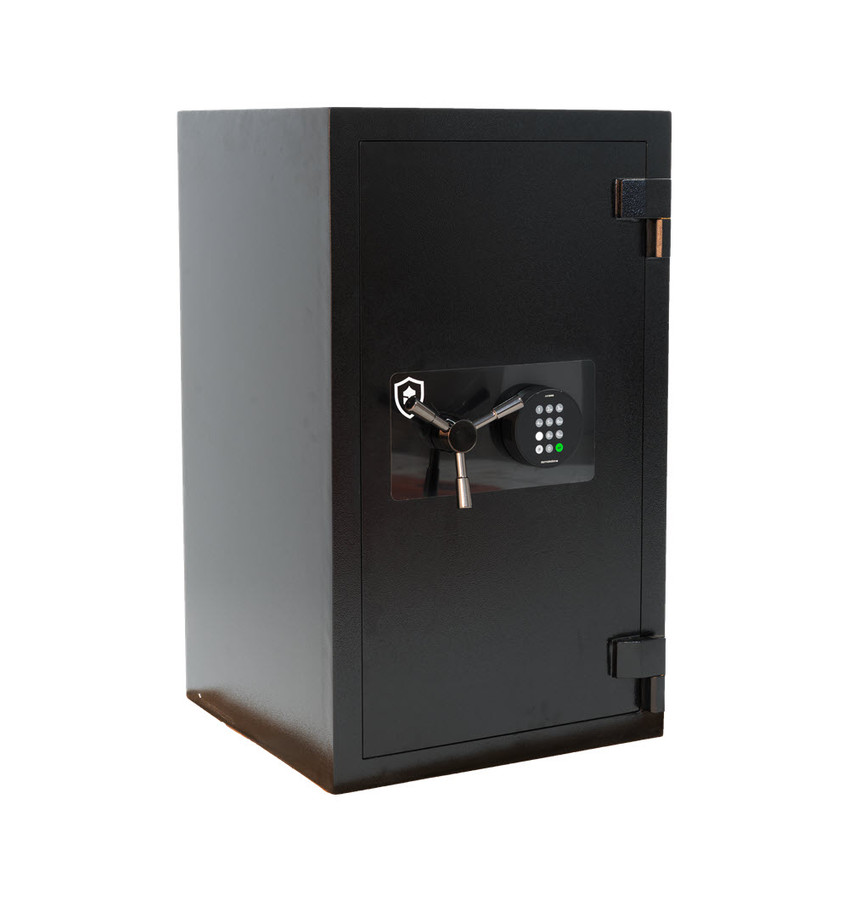

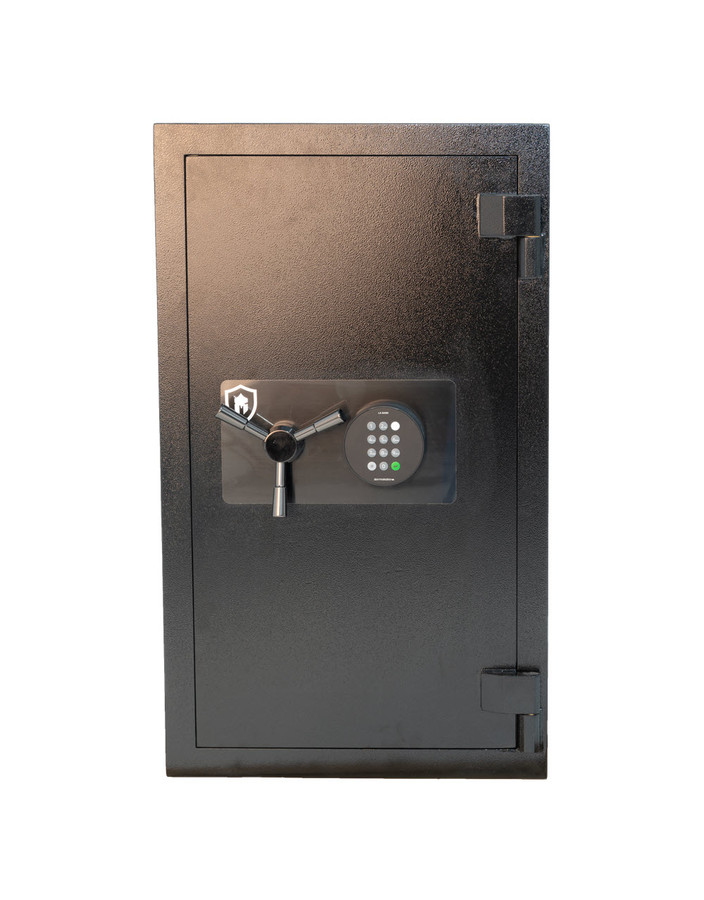

Sentinel Defender Series 4 (228kg)
Sentinel Defender 4D Safe
Extra-large luxury safe with maximum storage, dependable fire protection and premium interior finishes.
Estimated Warehouse Dispatch: 1 Day
30 Minute Fire Rating @ 930°C
$25,000 Cash Rating
Features
- 30 minutes fire resistance at 930°C
- $25,000 insurable cash rating
- Solid 12 mm steel door, 8 mm body
- 13 × 32 mm locking bolts with relocking device

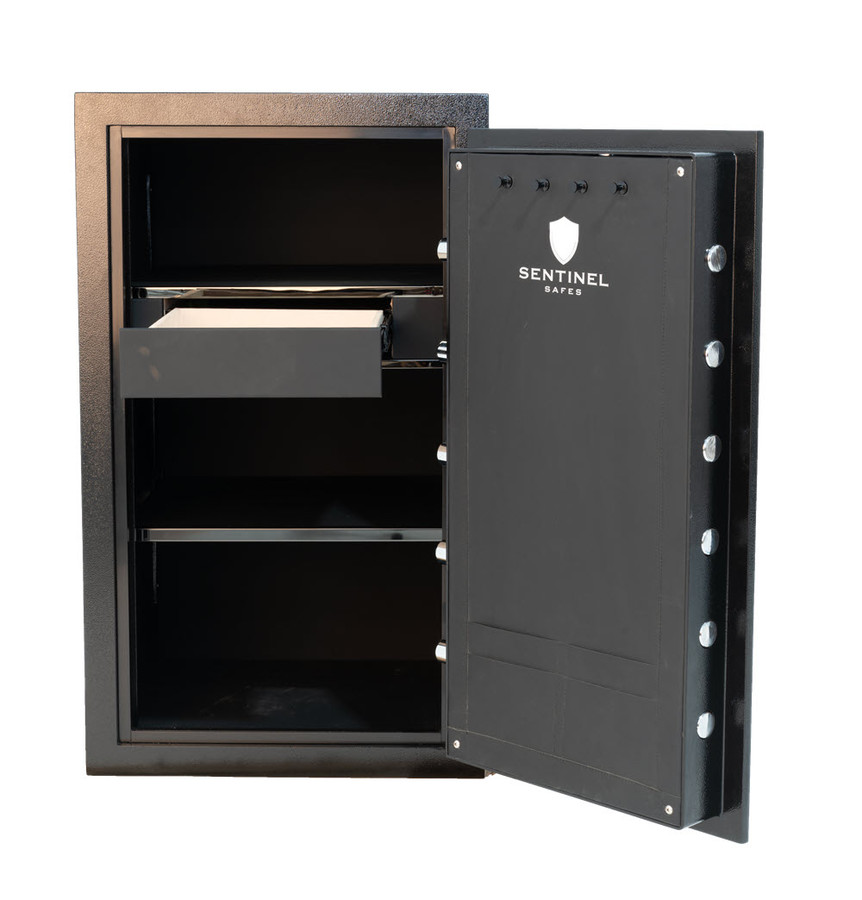

- Luxury pop-out drawer and LED sensor lighting
- High-security electronic lock with key override
Fire Rated
Tested for up to 30 minutes fire endurance at 930°C to protect documents and valuables.
Insurable Cash Rating
Independently certified to an insurable cash rating of up to $25,000 for valuables and documents.
Specifications
| Height (mm) | Width (mm) | Depth (mm) | |
|---|---|---|---|
| Internal | 805 | 455 | 395 |
| External | 900 | 550 | 550 |
Allow an additional 50 mm for handle/hinge projection unless otherwise specified.
Capacity & Weight
- Capacity: 160 L
- Weight: 228 kg
Construction
- Door: 12 mm solid steel + 12 mm fireproofing
- Body: 8 mm solid steel
- Locking: 13 × 32 mm bolts
- Relocking: Spring-loaded anti-tamper relocking device
Series-Specific Features — Defender
- Luxury pop-out drawer with synthetic leather lining
- Black chrome trim
- LED motion sensor interior lighting
What’s In The Box
- Sentinel Defender 4D Safe
- 2 × Override keys
- Fixing bolts and installation guide
Download PDF Resources
Item Code Family — Defender Series
| Model | Internal (mm) | External (mm) | Weight (kg) | Capacity |
|---|---|---|---|---|
| Defender-1D | 310 × 310 × 250 | 355 × 355 × 355 | 66 | 25 L |
| Defender-2D | 455 × 355 × 245 | 510 × 430 × 380 | 101 | 45 L |
| Defender-3D | 655 × 455 × 295 | 685 × 510 × 380 | 135 | 85 L |
| Defender-4D | 805 × 455 × 395 | 900 × 550 × 550 | 228 | 160 L |
Handle/hinge allowance of ~50 mm is not included in external dimensions.
